Sifam VU Audio Level Meter AL19WF with black bezel
Code: M0AT01
-
VAT
Surplus production stock available for ex-stock dispatch - max 44 available
Choose quantity
Order now for dispatch today.
Description
Sifam AL19WF is a lower cost alternative to the standard range
of Sifam full specification VU meters. The specification for the AL
range is based on BS6840 : Part 17, IEC 268-17 : 1990, but does not
fully meet the dynamic range characteristics.

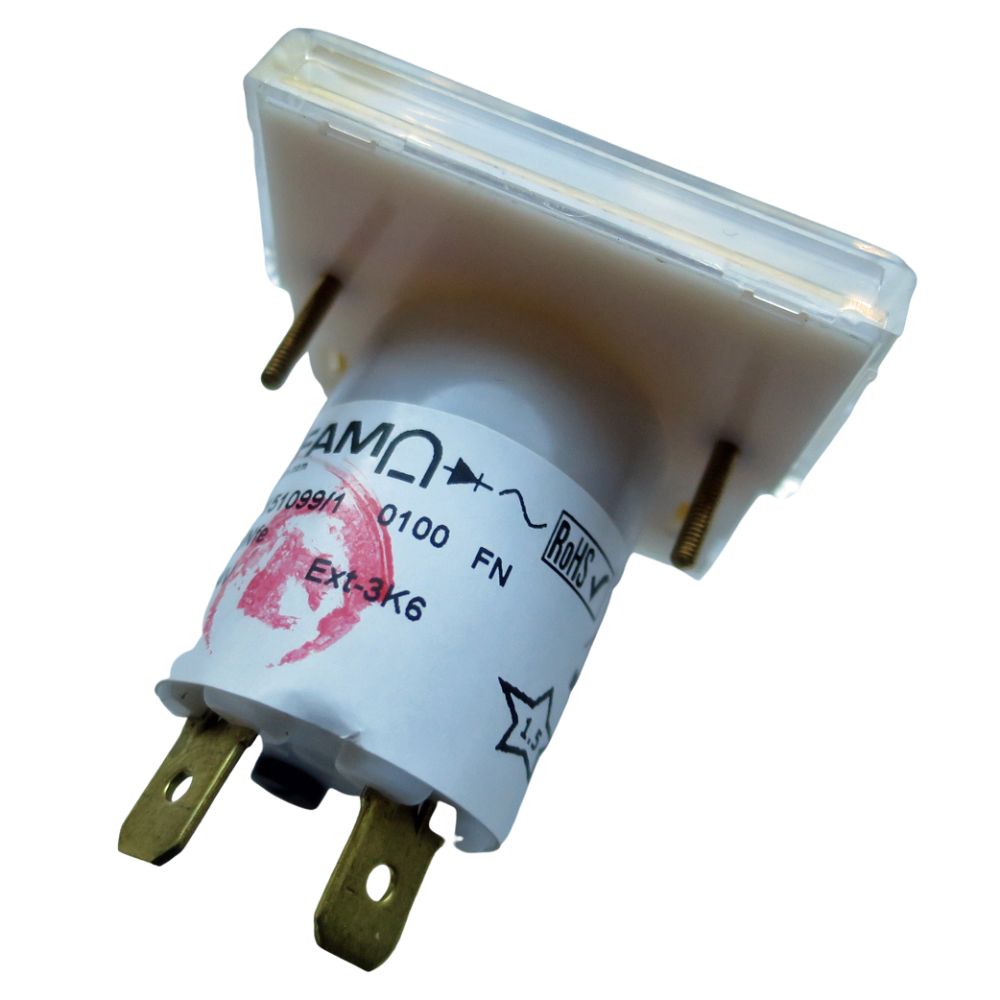

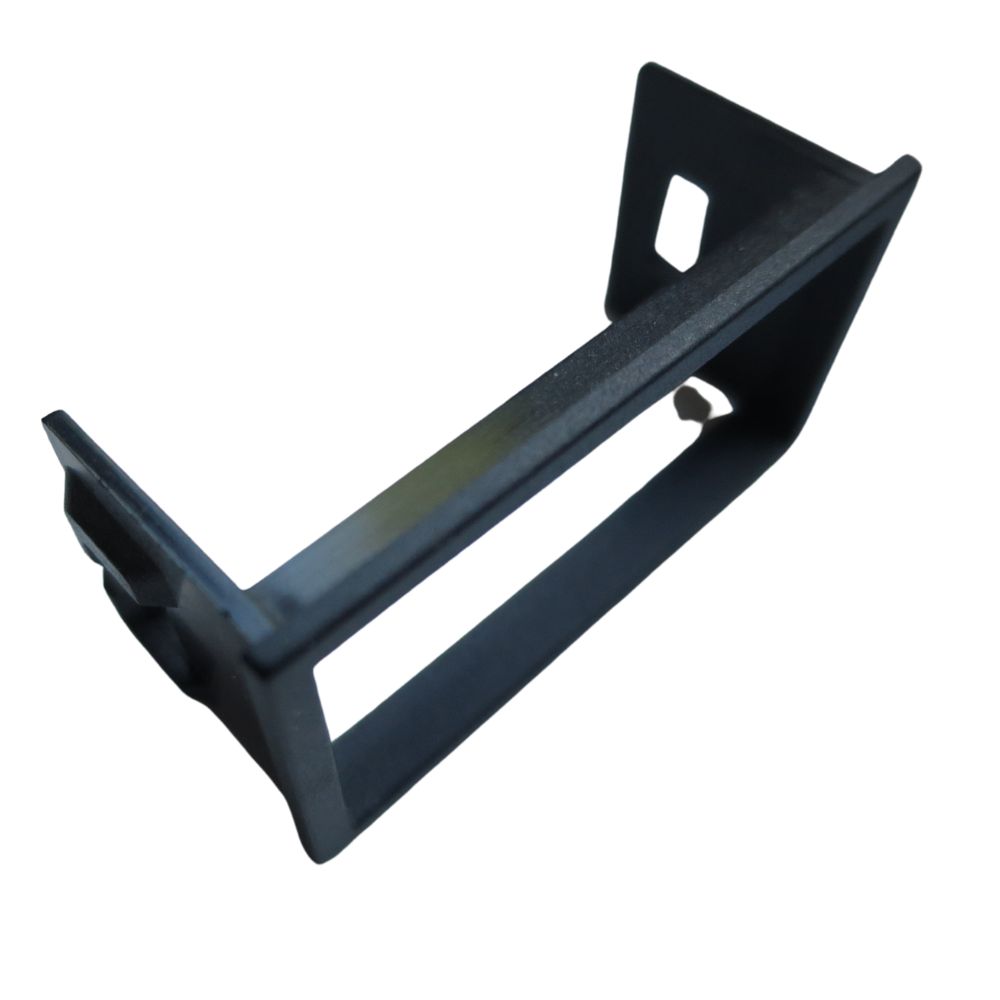

The AL-WF meters are suitable for rear of panel mounting, together
with bezel, with a rear zero adjust and tab terminals as standard -
the AL19WF has 6.3mm tab terminals.
Range: 0-1.734V AC

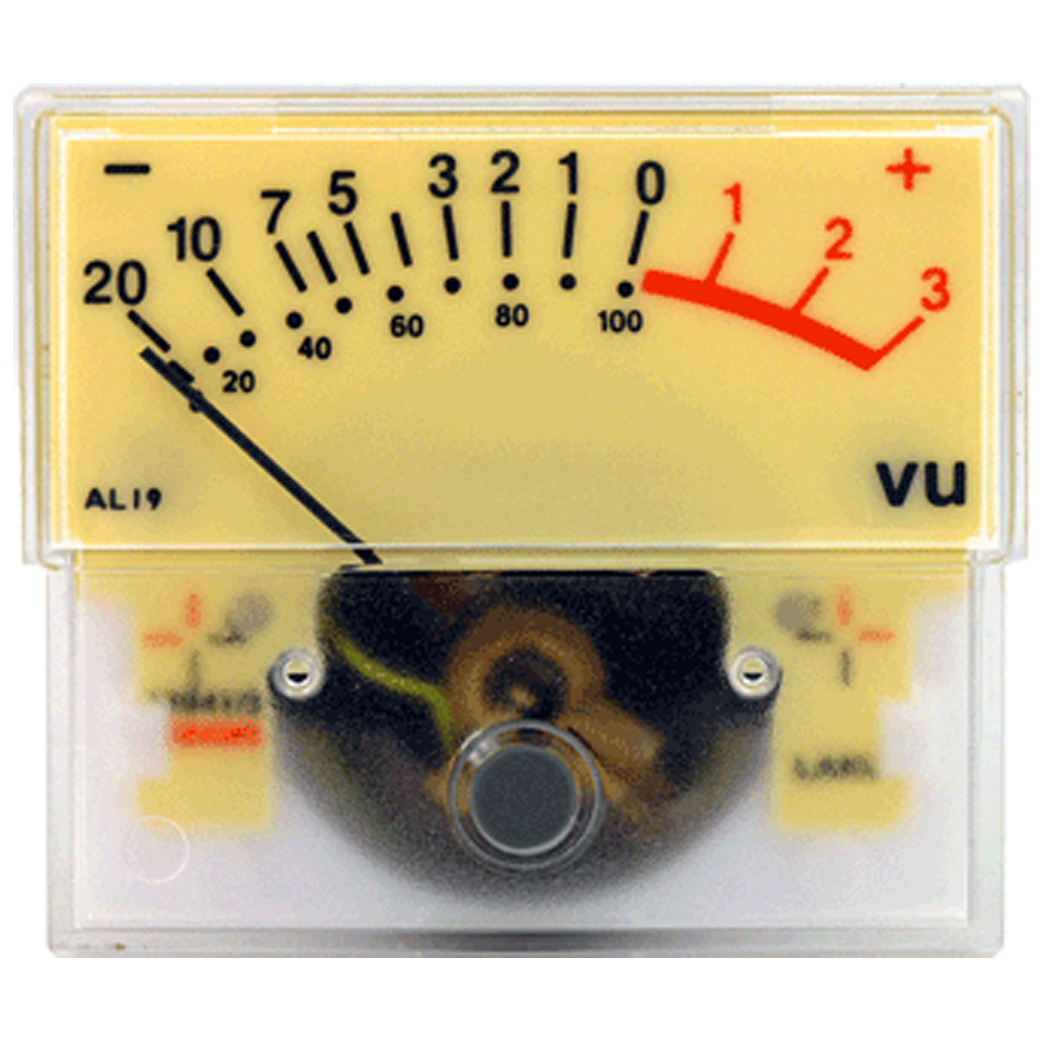

Scale: Vu scale standard "A" type
VU EL/-20/0 black scale
VU 0/+3 red scale
Caption: VU
Panel cutout: 47mm x 24mm

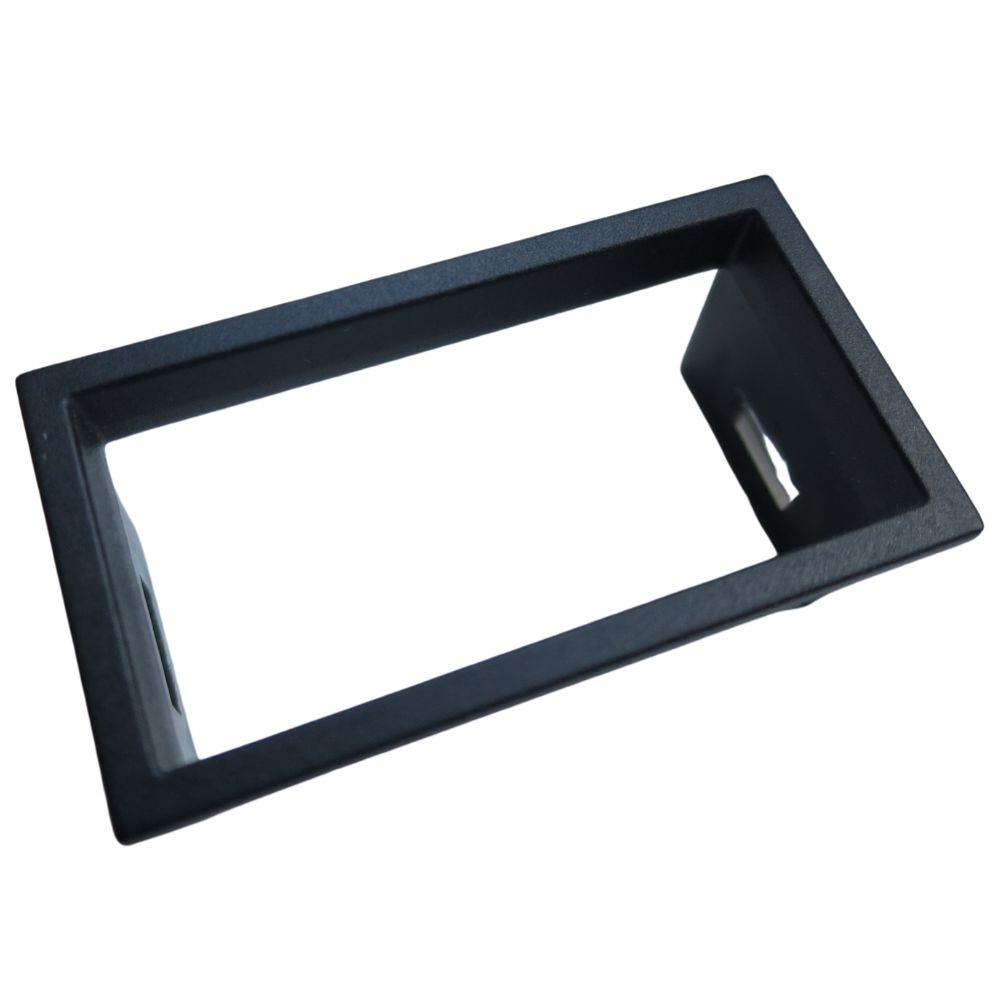

Bezel: 49mm x 27mm
Depth from front of panel: 41mm
Sifam product code: AL19WF IS113
