Assemtech Rectangular reed c/o switch, NO/NC, 100V, 250mA
Code: S0REED01
£5.94
was
£7.66
(£4.95
ex VAT)
-
VAT
Max 11 available
Choose quantity
Order now for dispatch today.
Description

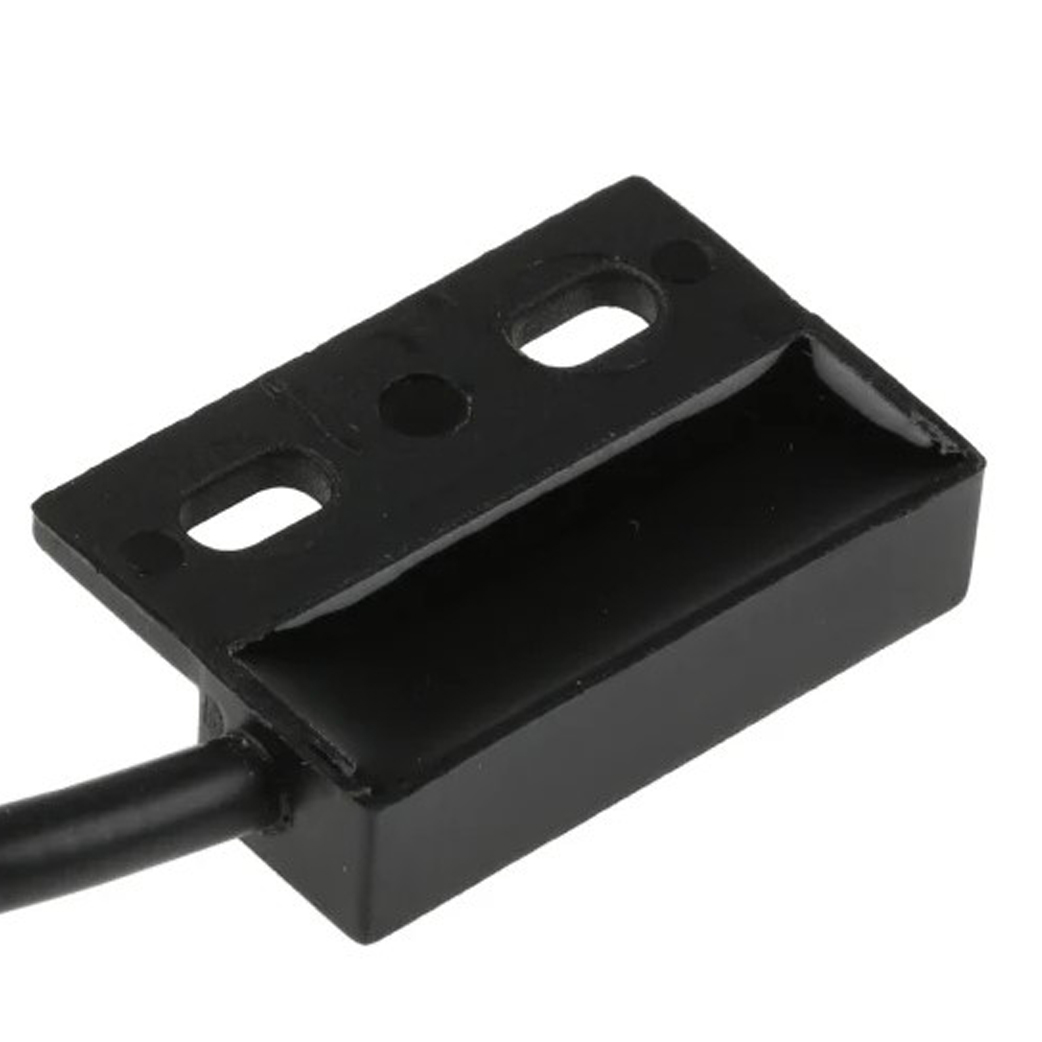

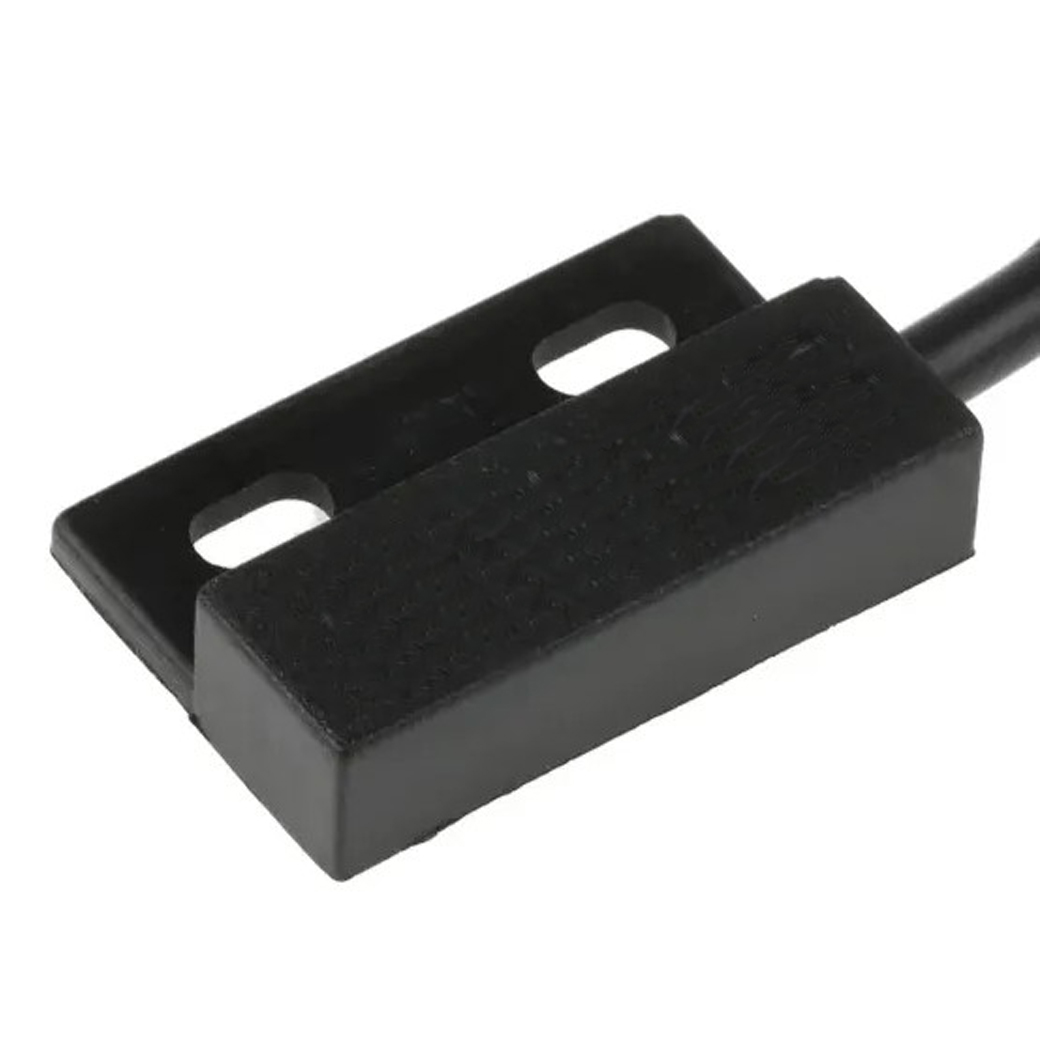

Rectangular
Moulded in black polypropylene
Cable length: 300mm

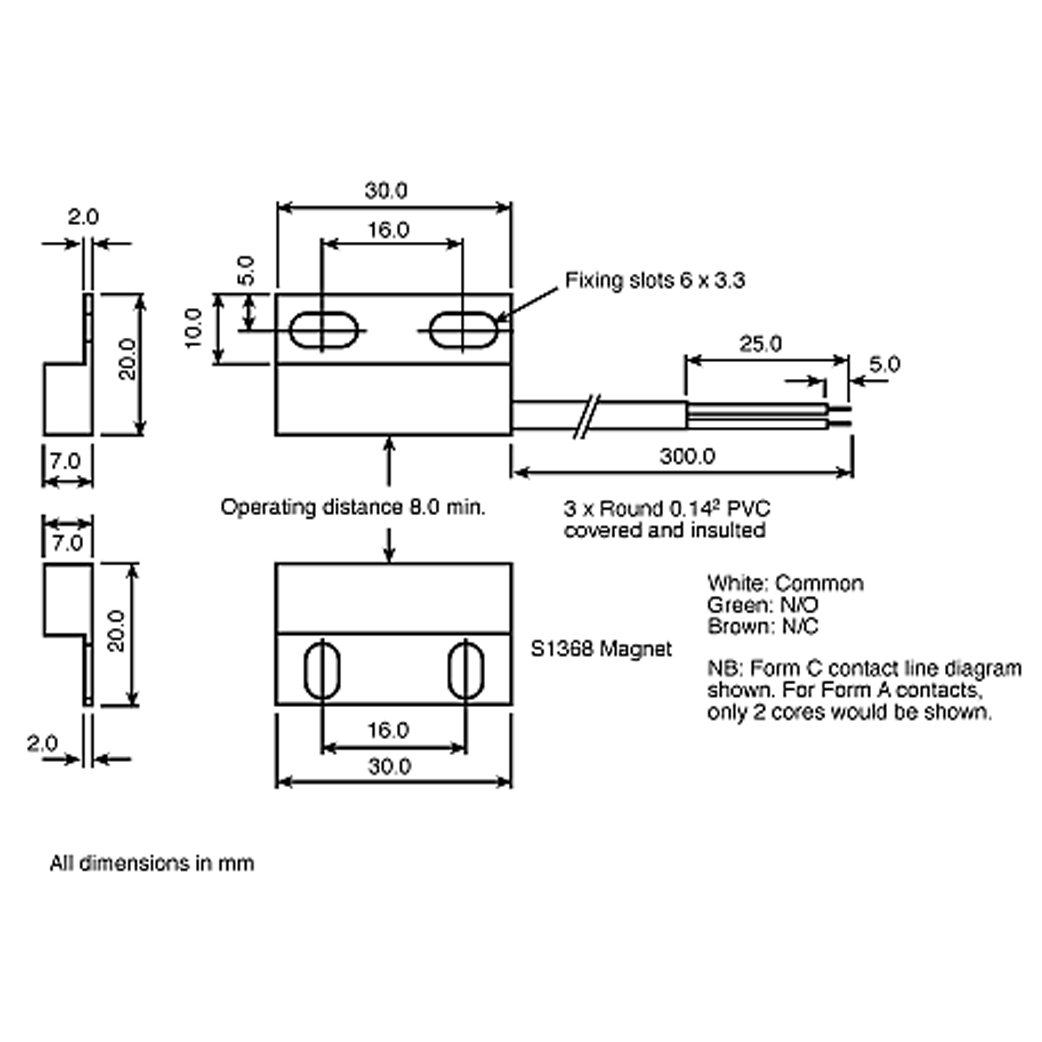

Dimensions: 30 x 20 x 7mm
Contacts: NO/NC
Note: Actuator magnet must be ordered separately, see Stock No: S0REEDMAG
| Switch Shape | Rectangular |
| Normal State Configuration | NO/NC |
| Terminal Type | Wire Lead |
| Maximum Current | 250mA |
| Maximum AC Voltage | 100V |
| Contact Resistance | 150m? |
| Total Length | 330mm |
| Length | 30mm |
| Dimensions | 30 x 20 x 7mm |
| Width | 20mm |
| Depth | 7mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
Manufacturer product code: S1367
These are surplus production stock originally ordered from RS Components under code 289-7806
