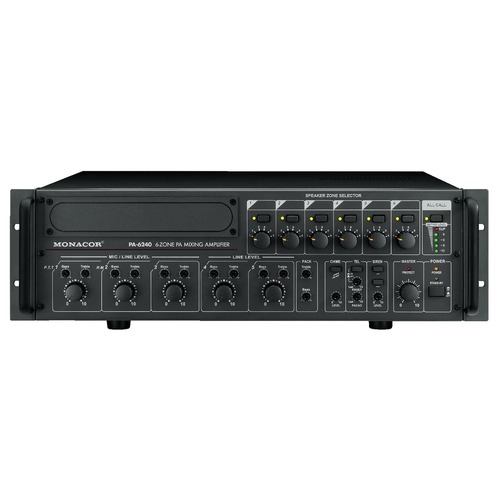

6-zone mono 240 W PA mixing amplifier
Code: MZMPA6240
£790.96
(£659.13
ex VAT)
Quantity Pricing
2
+
£778.50
each
(£648.75
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Mon 16th Feb.
Description
6-zone mono 240 W PA mixing amplifier
- 1 x 240 W rms (PA-6240)
- 6 zones, can be controlled individually
- Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs, regulated fan
- Insertions for various functions are available at option
- 17 V phantom power for electret microphones
- Connection for zone paging microphone PA-6000RC
- 1 insertion compartment at the front for automatic alarm message insertion PA-1120DM, a tuner insertion or a CD player insertion, all available at option
- 3 insertion facilities at the rear side for optional modules with the following features:
- PA-6FD: fault detection
- PA-6FM: fault monitoring
- PA-6FR: anti-feedback
- Mains operation and 24 V emergency power operation
- Removable mounting brackets
MONACOR product code: PA-6240
Details
| General information | |
| Output power | 240 W rms |
| 340 W rms | |
| Inputs | |
|
Mic/line 1-3 |
2.5 mV/5 k Ohm, 0.3 V/5 k Ohm |
|
Line 4-5 |
0.3 V/15 k Ohm
|
| Preamplifier | 0.775 V/10 k Ohm
|
| Outputs | |
|
Speakers |
100 V/70 V |
|
Preamplifier |
0.775 V/100 Ohm |
|
Record |
0.775 V/3 k Ohm
|
| Frequency range | 55-16,000 Hz |
| Tone control | |
|
Bass |
±10 dB/100 Hz |
|
Treble |
±10 dB/10 kHz |
| S/N ratio | |
|
Mic |
> 70 dB, A-weighted |
|
Line |
> 80 dB, A-weighted |
| THD | < 1% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | 230 V˜/50 Hz/750 VA, |
| 24 V DC current /20 A | |
| Dimensions | 430x133x352 mm, 3 RS |
| Weight | 17 kg |

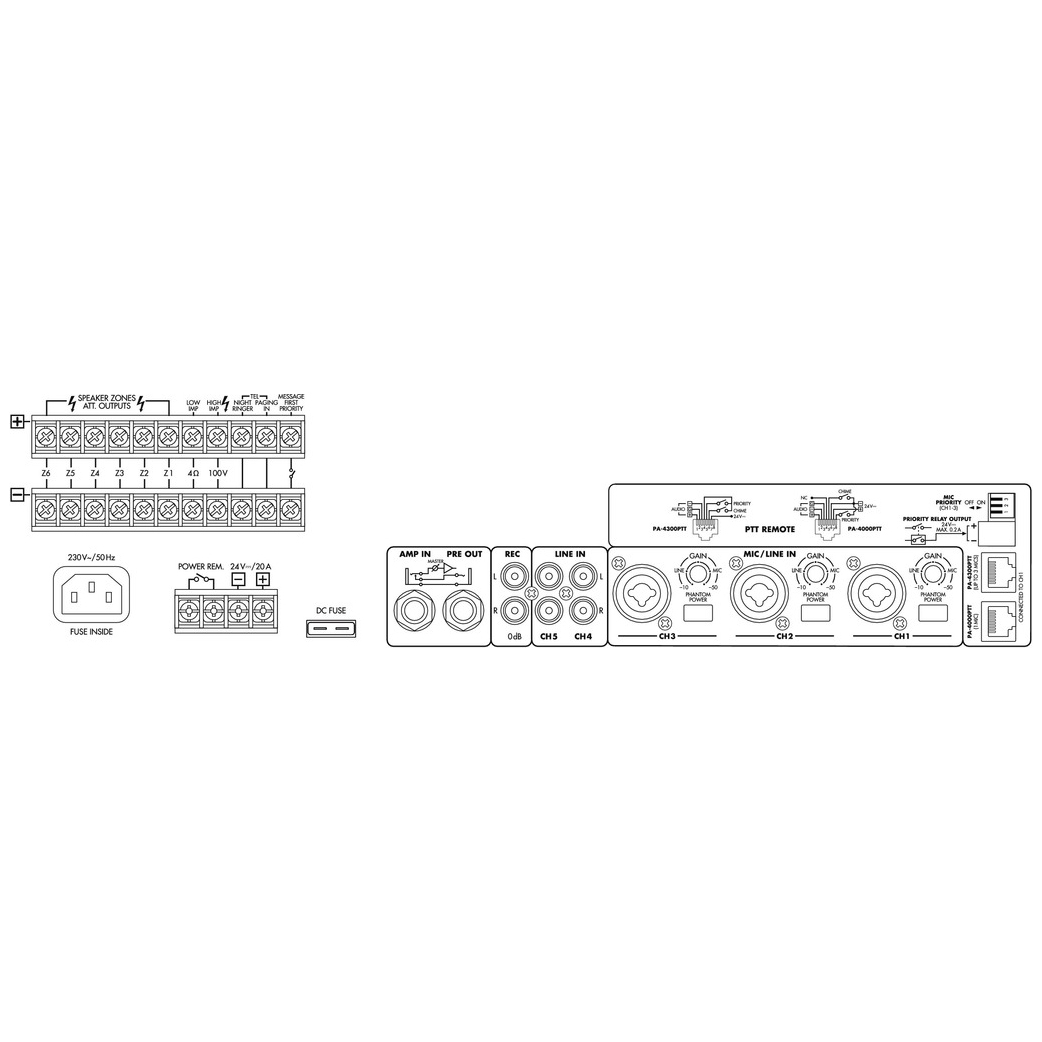

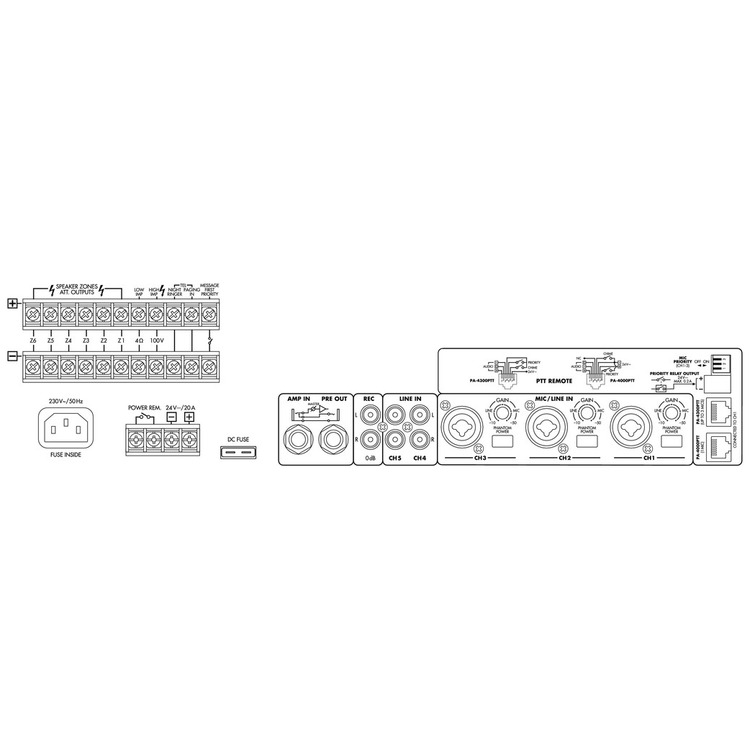

| Inputs | |
| Mic/line | 3 x 6.3 mm/XLR (Combo) |
| Line | 2 x RCA L/R |
| Zone paging microphone | 2 x RJ-45, optional |
| Push-to-talk microphone | 1 x 7-pole DIN |
| Telephone system | screw terminals |
| Ext. amplifier | 1 x 6.3 mm jack |
| Outputs | |
| Mom. push-button for chime | - |
| 1 x preamplifier | 1 x 6.3 mm jack |
| Speakers | screw terminals |
| Record | 1 x RCA L/R |
| Power supply | |
| 230V˜ | 3-pin IEC jack |
| 24V DC current | screw terminals |
