4-channel rack mounted voice/music audio mixer
Code: MZMVMX440SW
£122.84
(£102.37
ex VAT)
Quantity Pricing
3
+
£116.70
each
(£97.25
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Mon 16th Feb.
Description
4-channel voice/music mixer
Mixing made easy! An easy-to-use operating concept and clearly arranged features.
Two stereo line sources and two mono microphone sources can be mixed together without any problems.
Each input channel features a tone control. The master output levels can be preadjusted via recessed trimming potentiometers in order to protect them against overload.
An optional remote switch can mute the stereo master outputs.
- 2 stereo line inputs
- 2 balanced microphone inputs
- Parallel stereo line input on the front panel
- 3-way equalizer for each microphone input
- Common 2-way tone control for the two line inputs
- Muting via optional momentary push-button/switch
- 2 adjustable stereo master outputs
- Master output level can be preadjusted via trimming potentiometers
- Adjustable headphone output
- Stereo record output
- 482mm (19") rack installation, 1RS, with supplied mounting brackets
MONACOR product code: VMX-440/SW
Details
| Line input, stereo | 100mV/10k? |
| Microphone input | 1mV/600? |
| Master output, stereo | 1-3V/100? |
| Record output, stereo | 1V/100? |
| Headphones, stereo | > 32 Ohm, 2 x 15mW |
| Frequency range | 20-20,000Hz |
| THD | 0.05% |
| S/N ratio | > 60dB |
| Equalizer, bass | ±12dB/30Hz |
| Equalizer, midrange | ±12dB/1kHz
(voice only) |
| Equalizer, treble | ±12dB/12kHz |
| Power supply | 230V˜/50Hz/10VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482x45x274mm, 1RS |
| Weight | 2.9kg |

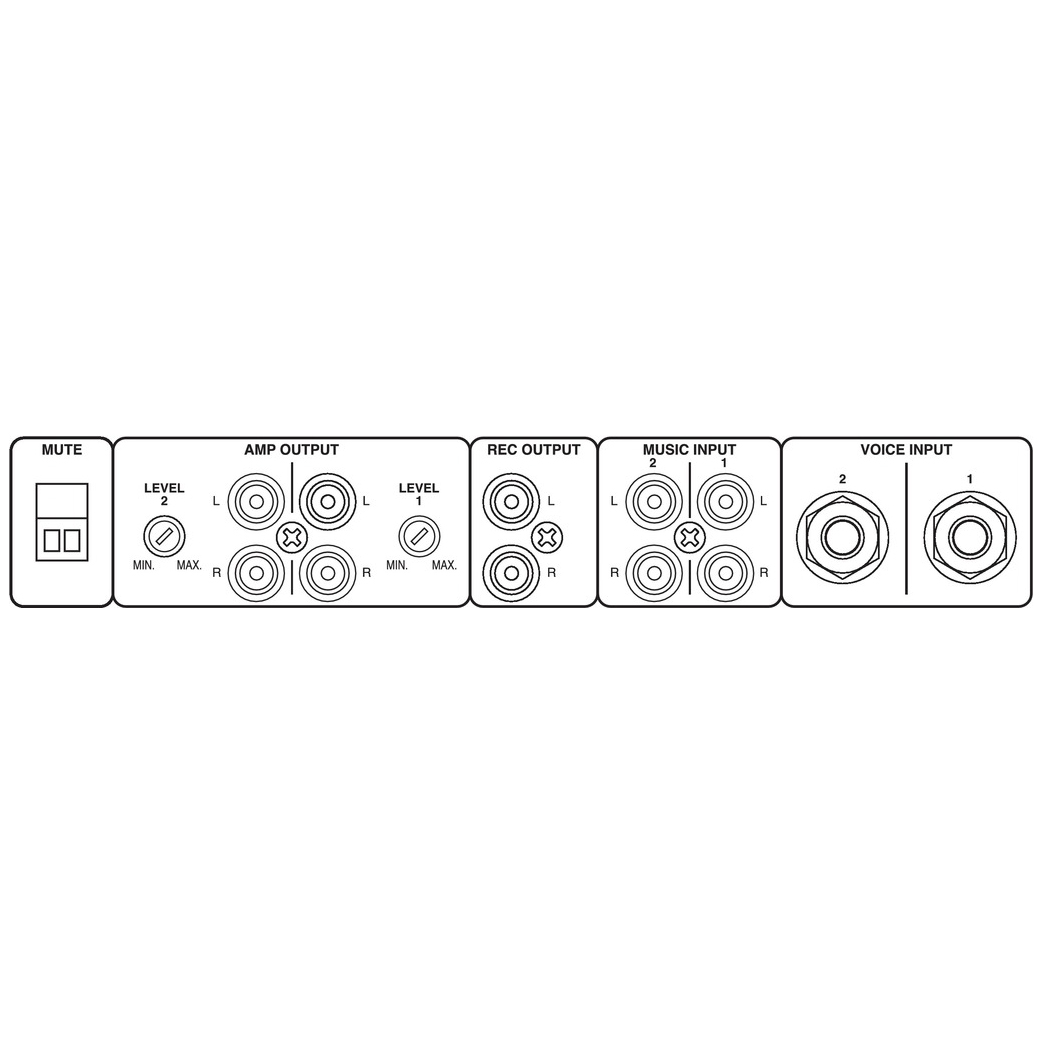

| Line input, stereo | 3 x RCA L/R |
| Microphone input | 2 x 6.3mm jack, bal. |
| Master output, stereo | 2 x RCA L/R |
| Record output, stereo | 1 x RCA L/R |
| Headphones | 1 x 6.3mm jack |
| Mute | screw plug-in connection |
