STA-400D Digital Audio Amplifier - 4 Ohms 2x 270WRMS, 8 Ohms 2x 180WRMS,
Code: MZMSTA400D
Quantity Pricing
-
VAT
Choose quantity
Order now for dispatch on Mon 16th Feb.
Description
The STA-400D is part of a new generation of digital PA amplifiers from IMG Stage Line impresses with a high power capability and high energy efficiency.
4 Ohms 2x 270WRMS, 8 Ohms 2x 180WRMS,
Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.
- Class D concept
- 482 mm (19") rack installation, 1 RS, with supplied mounting brackets
- Silent operation due to temperature-controlled fans
- Lightweight design due to compact switch-mode PSU
- Energy-saving concept due to high efficiency
- Powerful bass reproduction due to large buffer capacitors (high power reserves)
- 2 level controls
- Protected against short circuit and overtemperature
- LEDs for indicating power, overload (clip) and protect
- Super slimline design
- NEUTRIK SPEAKON connections
IMG STAGE LINE product code: STA-400D
Details
| Output power | |
| RMS power | |
|
4 Ohm |
2 x 270 W
RMS
2 x 325 W MAX |
|
8 Ohm |
2 x 180 W
RMS
2 x 240 W MAX |
|
8 Ohm bridged operation |
- |
|
4 Ohm bridged operation |
- |
| Max. power | 700 W MAX |
| General information | |
|
Inputs |
1 V/10 K Ohm (XLR, bal.),
1 V/4.7 K Ohm (RCA) |
|
Frequency range |
20-20,000 Hz |
|
S/N ratio |
> 110 dB, A-weighted |
|
Crosstalk attenuation |
- |
|
THD |
< 0.02 % |
|
Power supply |
230 V˜/50 Hz/600 VA |
|
Admiss. ambient temp. |
0-40 °C |
|
Dimensions |
482x277x52 mm, 1 RS |
|
Weight |
2.5 kg |

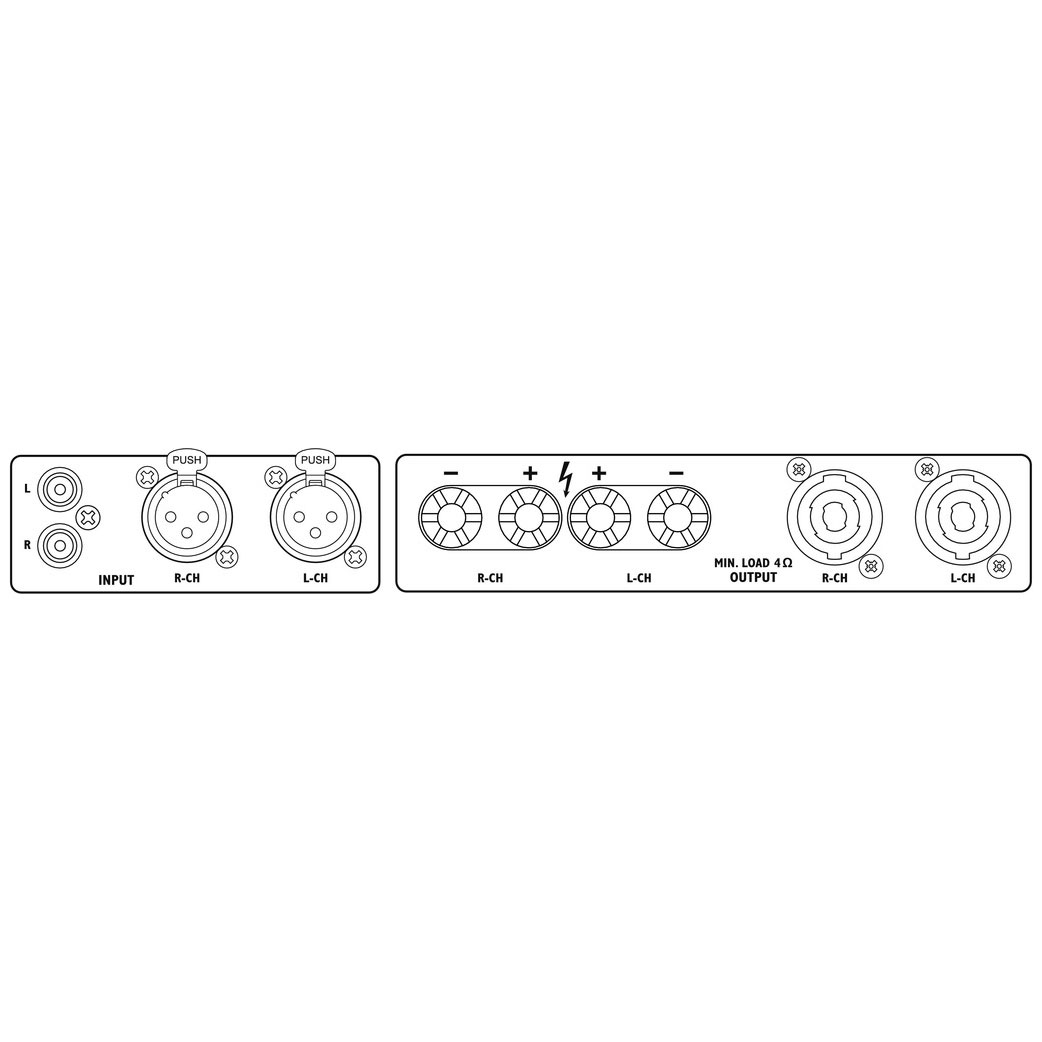

| Connections | 1 x 3-pin IEC jack
1 x 3-pole XLR L/R 1 x RCA L/R 1 x NEUTRIK SPEAKON L/R 2 x pair of screw terminals |
