Miniature Hi-Fi full range speaker, 30W MAX, 8 Ohm
Code: MZMSPX20M
£38.14
(£31.78
ex VAT)
Quantity Pricing
2
-
4
£37.85
each
(£31.54
each ex VAT)
5
+
£37.57
each
(£31.31
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Mon 16th Feb.
Description

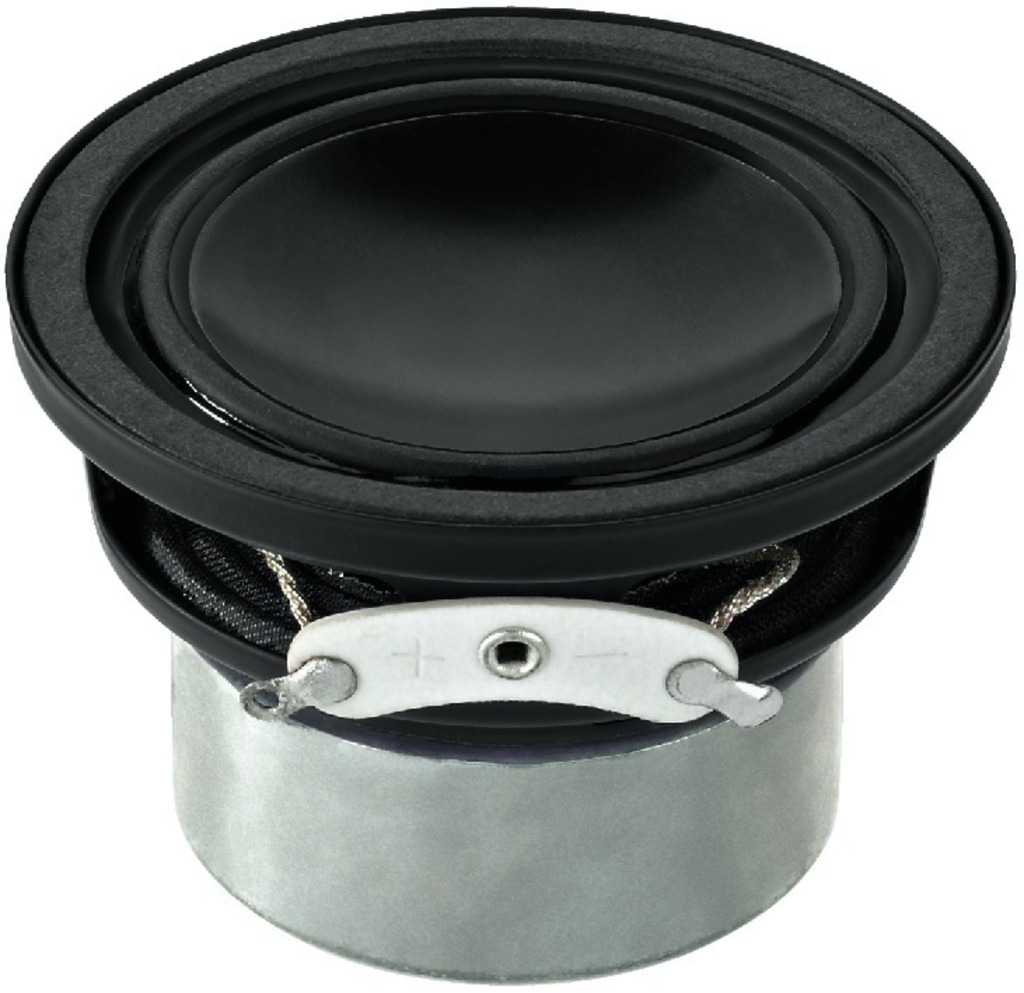

Miniature Hi-Fi full range speaker, 30WMAX, 15WRMS, 8Ω
Mini full range speaker, suitable for Hi-Fi, round steel basket with rear ventilation of the centering spider (adhesive mounting or clamp mounting), inverse laminated cone, efficient neodymium drive system for a perfect full range reproduction with an excellent efficiency in proportion to the size. 25mm voice coil of high power capability.
MONACOR product code: SPX-20M
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 157Hz |
| Max. frequency range | f3-22,000Hz |
| Music power | 30WMAX |
| Power rating (P) | 15WRMS |
| SPL (1W/m) | 87dB |
| Suspension compl. (Cms) | 0.76mm/N |
| Moving mass (Mms) | 1.3g |
| Mech. Q factor (Qms) | 4.52 |
| Electr. Q factor (Qes) | 0.46 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 0.2 l |
| DC resistance (Re) | 6.9Ω |
| Force factor (BxL) | 4.5Tm |
| Voice coil induct. (Le) | 0.13mH |
| Voice coil diameter | 25mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±0.5mm |
| Eff. cone area (Sd) | 13cm2 |
| Magnet weight | neodymium |
| Weight | 0.17kg |
