Hi-Fi full range speaker, 40W MAX, 8 Ohm
Code: MZMSPX30M
£22.93
(£19.11
ex VAT)
Quantity Pricing
2
-
4
£22.12
each
(£18.43
each ex VAT)
5
+
£21.78
each
(£18.15
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Mon 16th Feb.
Description

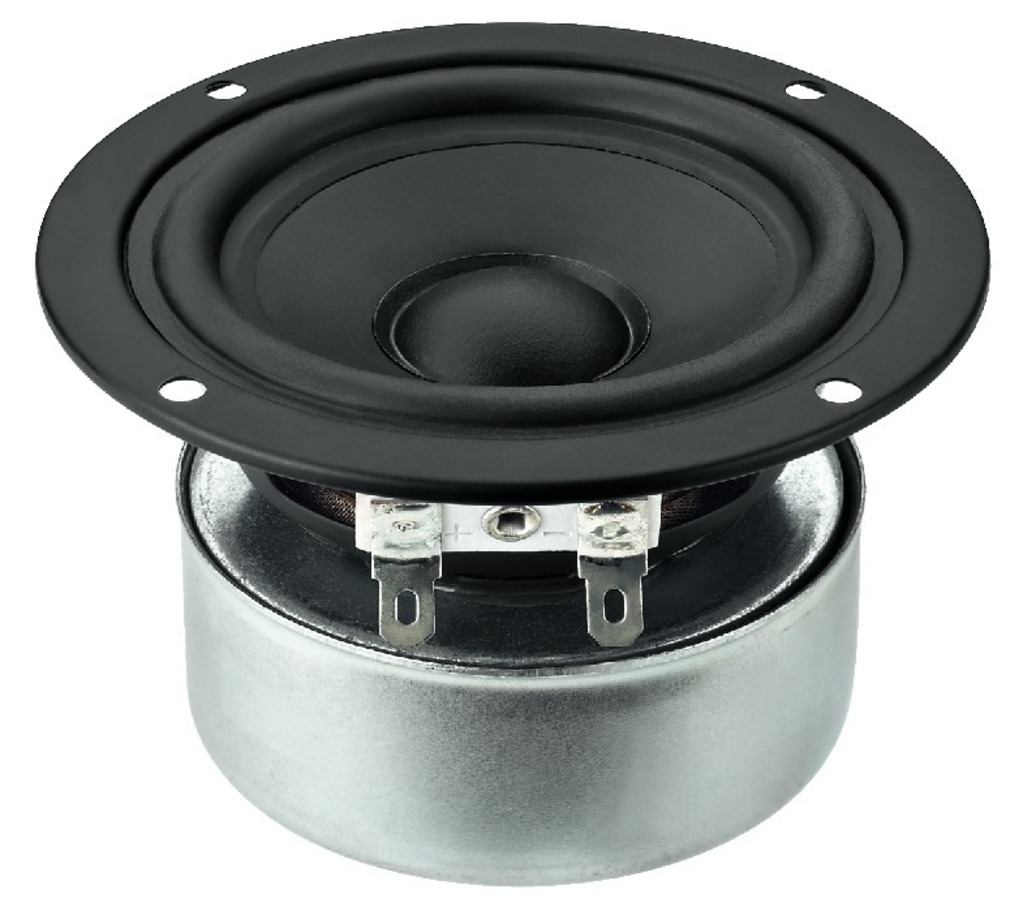

Hi-Fi full range speaker, 40WMAX, 20WRMS, 8Ω
- Compact Hi-Fi full range speaker with a very good sound quality
- Low-resonance polypropylene cone
- Centering spider with rear ventilation
- Shielded magnetic system
- Application in small speakers or satellite systems
- Ideally suited for the application in FAST speakers (full range and subwoofer technology)
HOBBY HiFi 03/2012
"Without a correction circuit, reaches its full potential ... an excellent 3" full range speaker available at an amazingly attractive price."
MONACOR product code: SPX-30M
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 100Hz |
| Max. frequency range | f3-20,000Hz |
| Music power | 40WMAX |
| Power rating (P) | 20WRMS |
| SPL (1W/m) | 86dB |
| Suspension compl. (Cms) | 1.23mm/N |
| Moving mass (Mms) | 2.1g |
| Mech. Q factor (Qms) | 3.453 |
| Electr. Q factor (Qes) | 0.89 |
| Total Q factor (Qts) | 0.71 |
| Equivalent volume (Vas) | 1.78 l |
| DC resistance (Re) | 6.4Ω |
| Force factor (BxL) | 3.05Tm |
| Voice coil induct. (Le) | 0.18mH |
| Voice coil diameter | 20mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.1mm |
| Eff. cone area (Sd) | 32cm2 |
| Magnet weight | 119g |
| Weight | 0.5kg |
