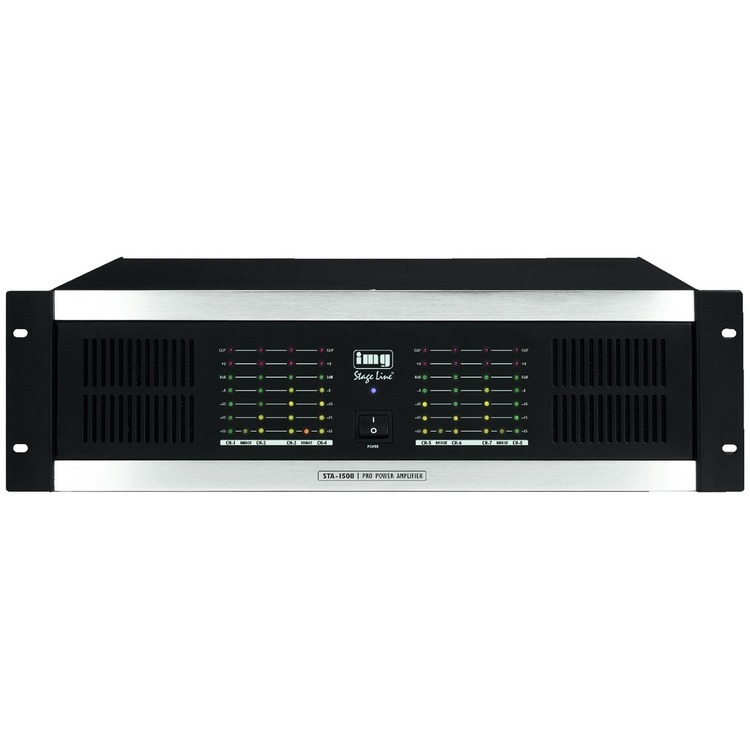

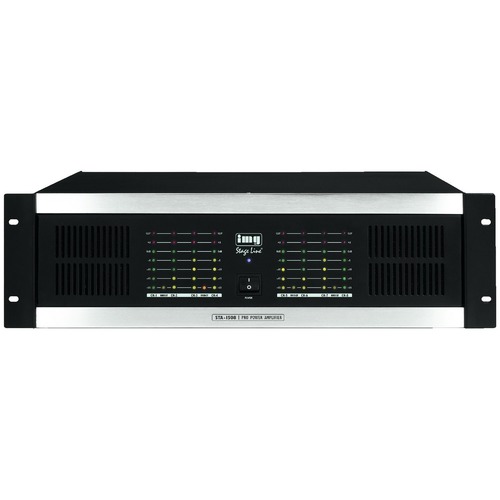

8 input channel stereo PA amplifier 100W with 4 Ohm speakers
Code: MZMSTA1508
£699.52
(£582.93
ex VAT)
Quantity Pricing
2
+
£688.50
each
(£573.75
each ex VAT)
Choose quantity
Order now for dispatch on Thu 8th Jan.
Description
Multi-channel PA amplifier with 8 input channels and integrated limiter.
- 8 Balanced inputs
- High-pass filter, low-pass filter can be switched on additionally for each channel
- Tamper-resistant level adjustment on the rear side
- 8 Ohm bridge operation possible
- LED VU meter and LED indication for overload (clip) for each channel
- Soft start
- Ground lift switch
- Speaker switch-on delay
- Fan-cooling
- Protected against short circuit, overheating and DC voltage overlay at the outputs
IMG STAGE LINE product code: STA-1508
Details
| Output power | |
|
RMS power |
|
|
Stereo 4 Ohm |
8 x 160W RMS |
|
Stereo 8 Ohm |
8 x 100W RMS |
|
8 Ohm bridge operation |
4 x 320W RMS |
|
Max. power |
1,800W MAX |
| General information | |
|
Inputs |
0.7V/20k Ohm
|
|
Frequency range |
12-60,000Hz/-1.5dB |
|
S/N ratio |
> 80dB |
|
Crosstalk attenuation |
> 60dB |
|
THD |
< 0.1% |
|
Power supply |
230V˜/50Hz/2,400VA |
|
Admiss. ambient temp. |
0-40 °C |
|
Dimensions |
482x132x310mm, 3RS |
|
Weight |
19kg |
| Connections | 8 x XLR, bal.
8 x screw terminal |
