PM-2/15A Moving Coil Panel Meter - 15A dc
Code: MZMPM215A
£21.58
(£17.98
ex VAT)
Quantity Pricing
2
-
4
£20.80
each
(£17.33
each ex VAT)
5
+
£20.50
each
(£17.08
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Mon 9th Feb.
Description

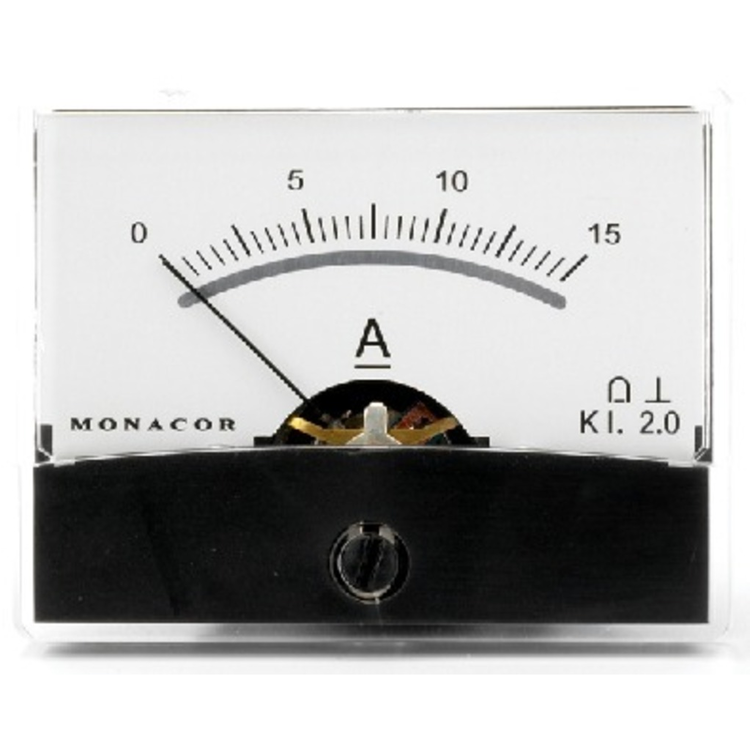

A 15A dc moving coil meter with wide angle, mirrored scale and zero adjustment.
Supplied with screw fixing kit- Size – 60.3(W) x 46.3(H) x 39(D)mm
With mirror scale, housing completely of plastic, quality class 2, zero point correction. The meters are prewired for an illumination.
For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.
MONACOR product code: PM-2/15A
Details
| Measuring range | 15A |
| Internal resistance | 4m Ohms
|
| Dimensions display | 60.3x46.3mm |
| Mounting cutout | dia 37.5mm |
| Mounting depth | 23mm |
