ARM-880 Audio Matrix System Wall Panel

Code: MZMARM880WP1

Write a review

£160.27 (£133.56 ex VAT)

Quantity Pricing

3 +

£152.26 each (£126.88 each ex VAT)

Choose quantity

Order now for dispatch on Thu 8th Jan.

Description

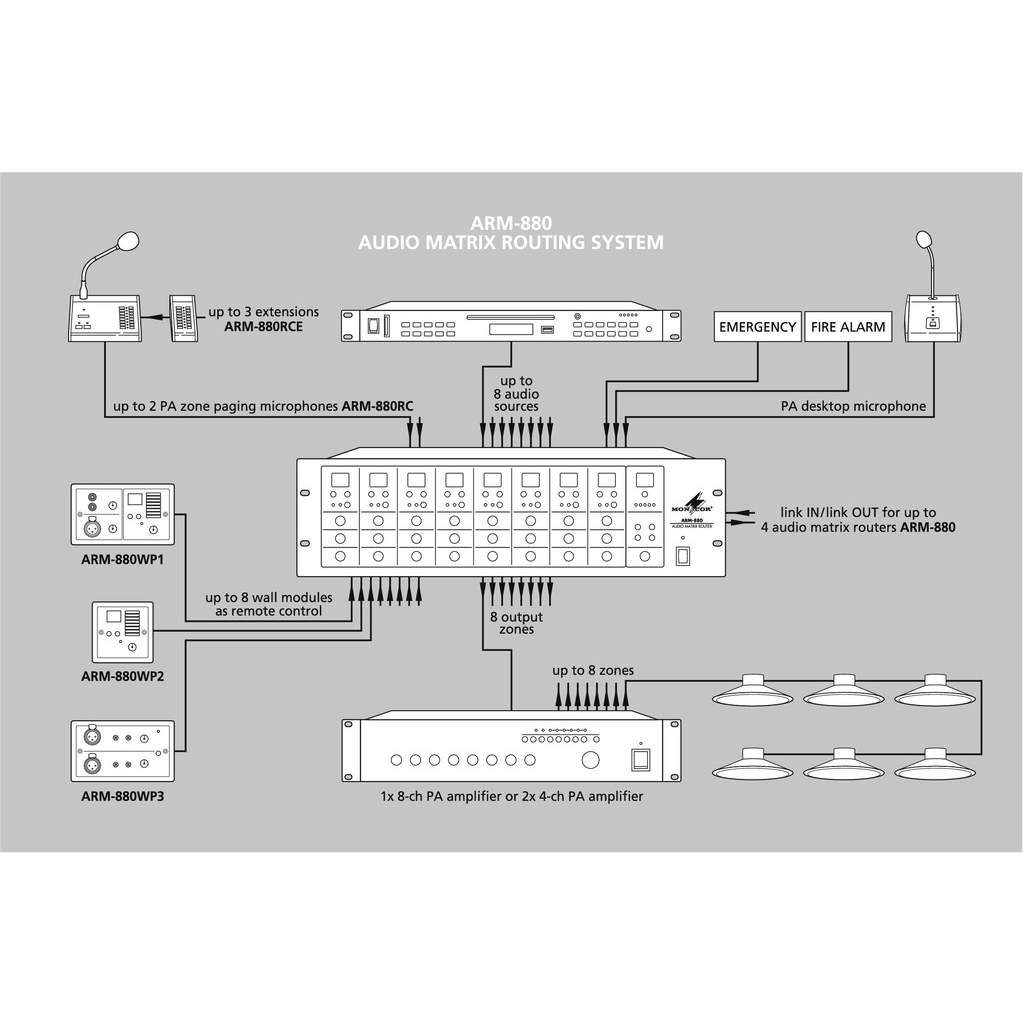

The ARM-880 is a highly flexible PA solution for multi-room applications. It is ideally suited for the application in hotels, in restaurants and bars, in conference rooms, schools, sports and fitness centres.

Eight different audio sources, e.g. CD players, SAT receivers, radio programmes can be distributed to 8 output zones, assignment as required.

The audio matrix router ARM-880 is the heart of the system. For the operation, one amplifier is required for each output used. This may be an individual power amplifier or an active speaker system.

Matching wall modules ARM-880WP1, ARM-880WP2 and ARM-880WP3 for the remote control of ARM-880 and with additional local inputs for the zone are available at option.

With a master/slave connection, it is possible to extend the system to up to 32 output zones. Connections for the various alarm signals and a local microphone are available.

Announcements can be made via 2 optional zone paging microphones ARM-880RC with zone selection.

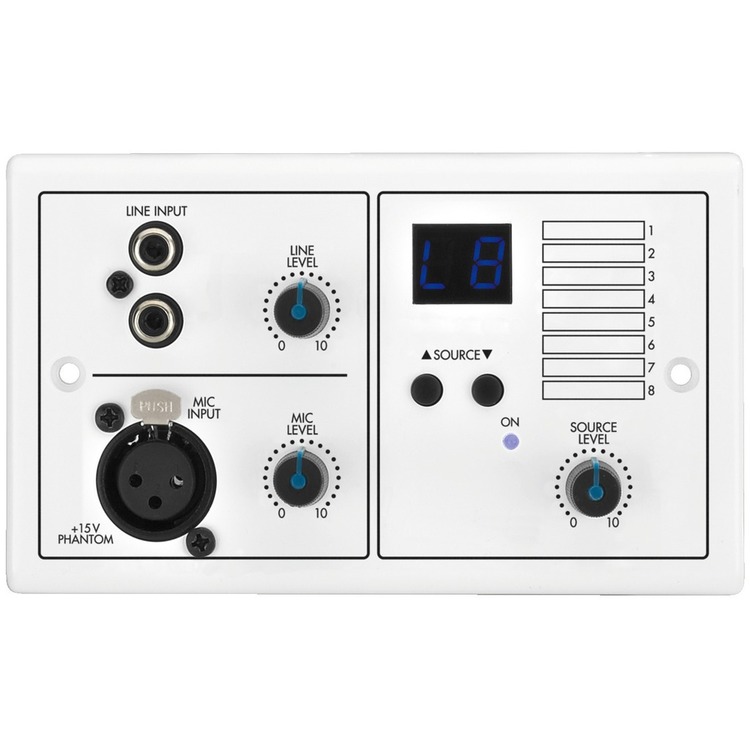

Wall module, for the remote control of audio matrix router ARM-880.

Range of application: remote control of one zone, local feed of audio signals
2 RCA jacks for line signals
Microphone connection via 3-pole XLR jack from NEUTRIK
Source selector switch
Level controls for line, microphone and source
15 V phantom power
7-segment LED display
Connection to ARM-880 and power supply via RJ45 jack and Cat. 5 network cable. For cable lengths of more than 50 m, a separate PSU is required for operation
Dimensions front panel: 146x86 mm
Supplied with robust flush-mounted metal housing

MONACOR product code: ARM-880WP1

Details

Help Centre

Click here to view pdf user guide
